Can Am Core 2021-2023

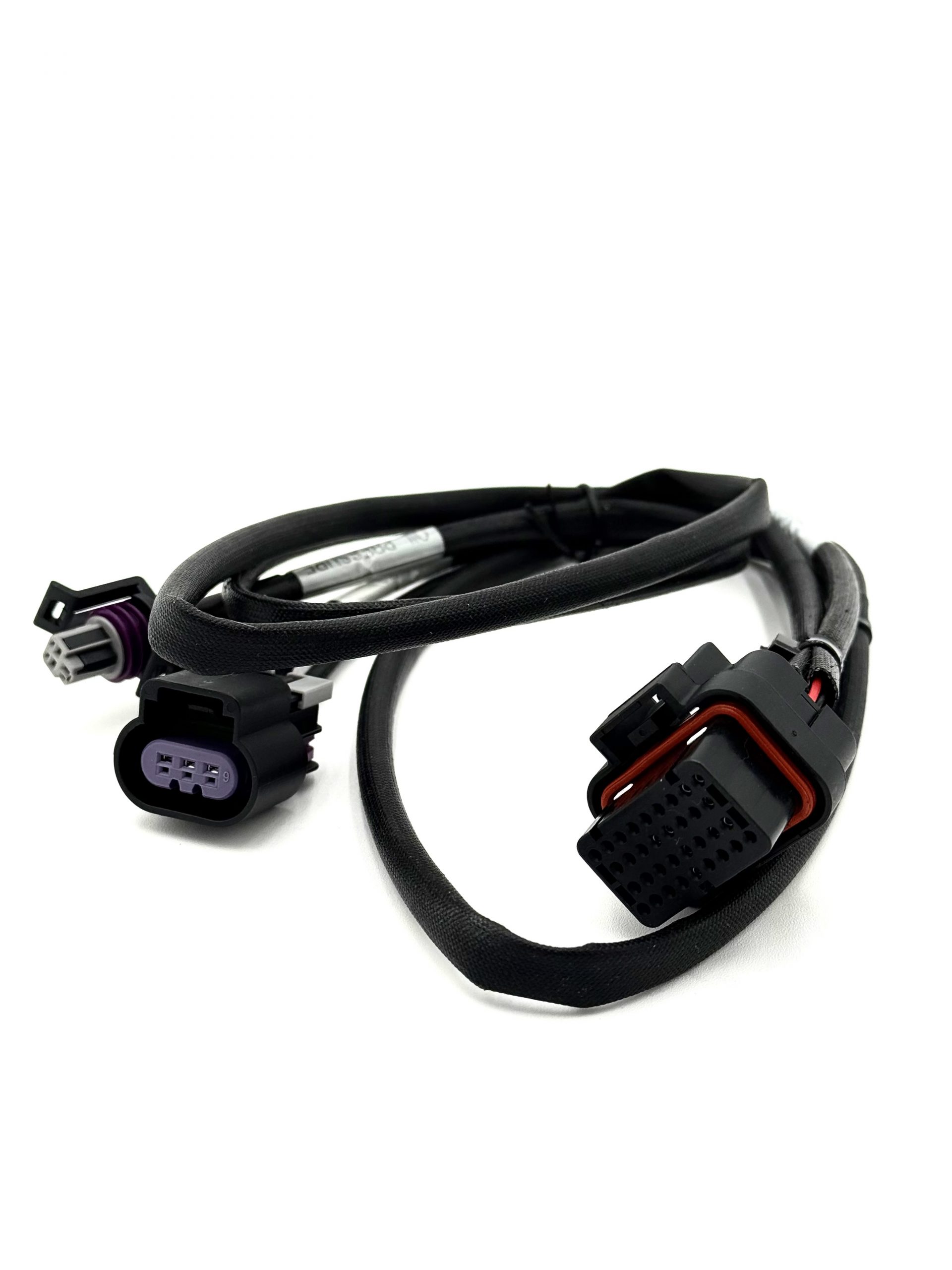

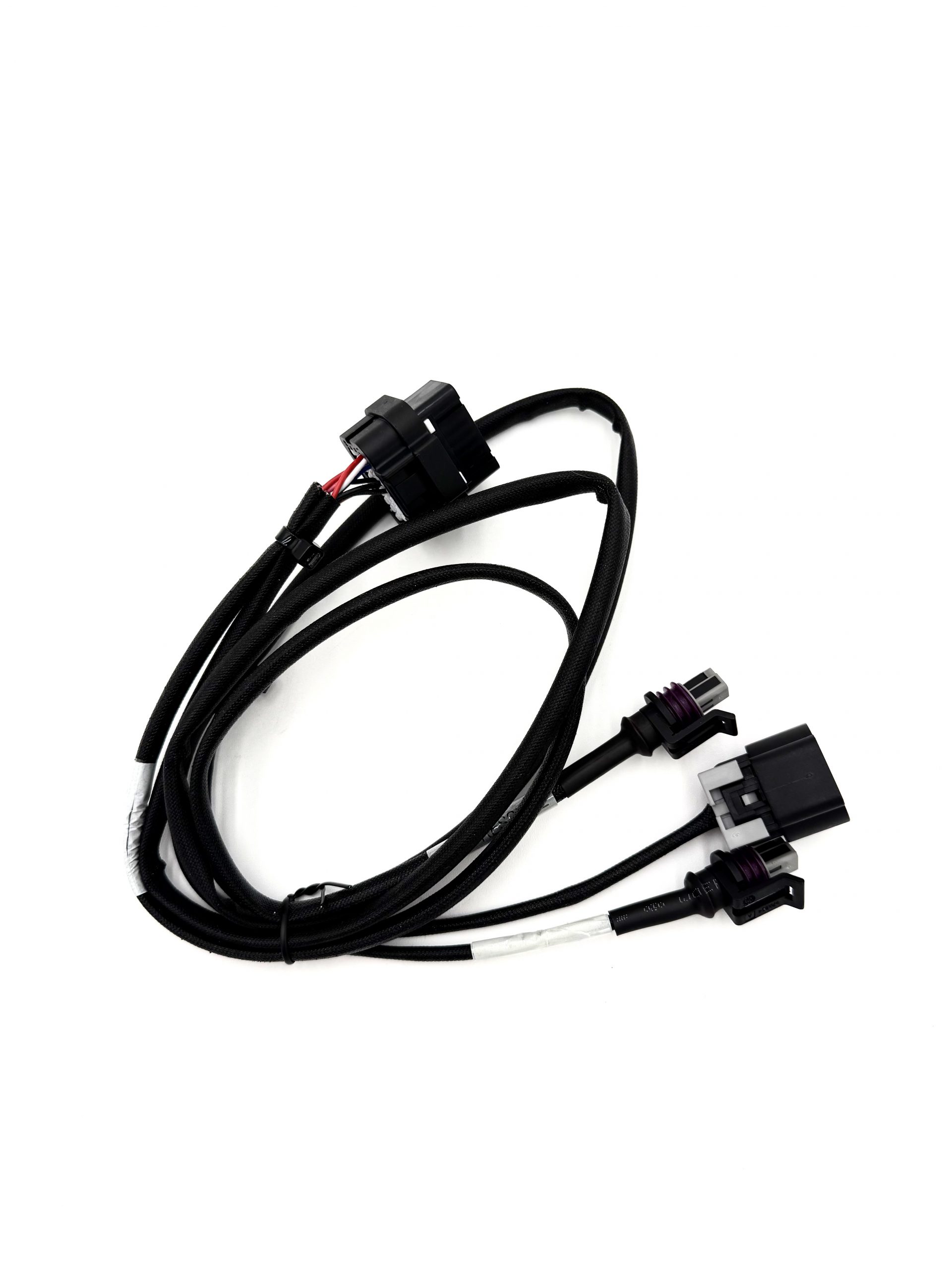

Optional wiring that adds flex fuel, oil pressure and fuel pressure inputs to your Axiom ECU.
The Axiom ECU works on your 2021–2023 Can-Am with the stock wiring. This harness is only for adding sensors the stock wiring doesn't have. With those sensors connected, the ECU can run flex fuel and can watch oil pressure and fuel pressure.

Included inputs:

Flex fuel
Oil pressure
Fuel pressure

Tuners, you need this harness if you want to:

Build safety features, such as cutting power or limiting the engine if oil pressure or fuel pressure drops out
Log oil pressure and fuel pressure while tuning
Tune a flex fuel setup

Riders, you need this harness if you want to:

Run flex fuel and switch between pump gas and E85
Have the ECU protect the engine if oil pressure or fuel pressure drops

You don't need it if you:

• Just want the tune

Want AFR on your stock dash? AFR only needs the Stock Dash AFR Reading entitlement, so there is no AFR input on this harness.

Note: the harness alone doesn't turn any of this on. Flex fuel needs this harness, a flex fuel sensor and the Flex Fuel Control entitlement. Oil and fuel pressure protection need the harness and the matching sensors.
